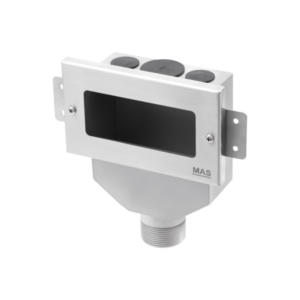

In-wall tundish windowed face.
TD3
TD3BF
TD3WWF
TD3WBF

In Wall Tundish Stainless Steel

TD3, TD3BF, TD3WWF, TD3WBF

MAS In-Wall Stainless Steel Tundish has a tapered body design which helps to eliminate fluid entering the unit.

A tundish drain provides a safety barrier between the overflow pipe and the drainpipe and is used in domestic and commercial plumbing.

Preventing unsanitary cross-contamination, water damage, spillage and acts as a backflow prevention valve.

Can also be used as an essential solution for air conditioning condensate discharge from pipes in high rise buildings.

Features:
Easy to install: Will fit into a 60mm stud wall.
Outlet size: is a 40mm bsp male thread.
Built in Entry Point for Condensate Drain:  25mm x 35mm x 25mm Diameter.

TD3-Instructions-V2022

TD3-Instructions-V2023

*Registered Design 15005/2013.

TD3 Specification

Scroll below for more product details.

Material

Material Thickness

Material Finish

Options

TD3

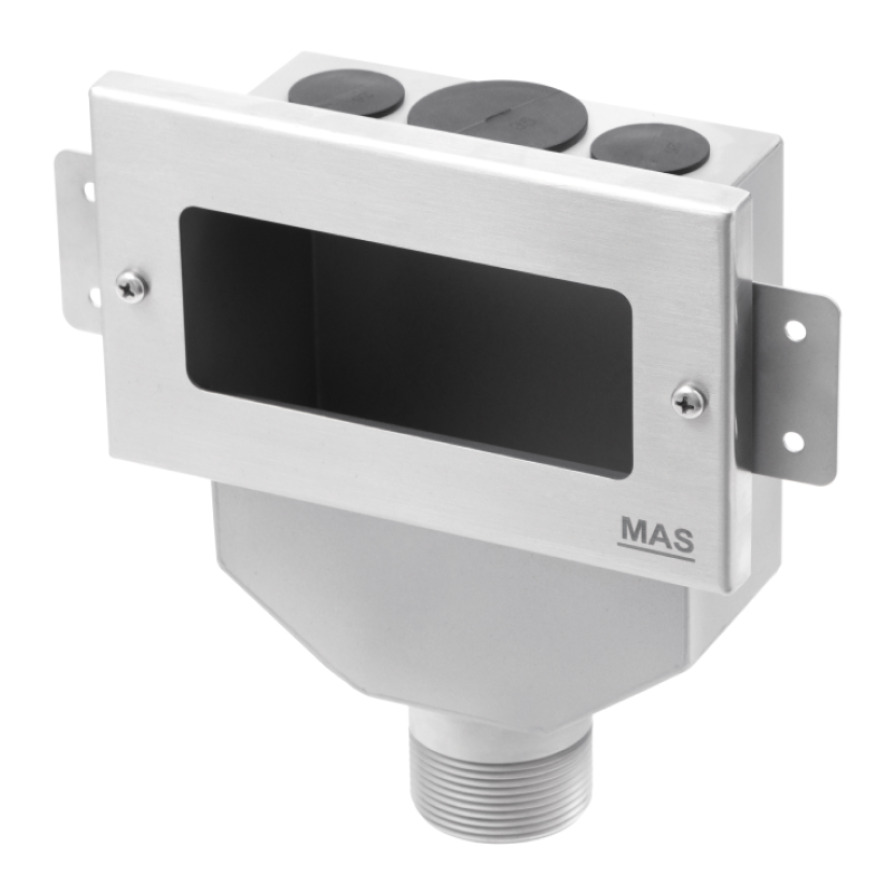

In wall Tundish with windowed face plate

In-Wall Tundish with Windowed Face Plate

In wall tundish with window face.

Our MAS In-Wall Tundish has a windowed face and features a self-draining tapered body.

Our tundish prevents any sort of cross contamination between an overflow pipe and a drain pipe.

It serves as an air gap and provides a visible window into the overflow system, as well.

Without the tundish in place, you would not be able to see any water flowing from the pressure relief valve to the overflow drain.

Installing a tundish can save plumbers time and reduce the risk of water damage or safety hazards for end users.

Constructed from 304 grade stainless steel with a brushed finish-anti-corrosion surface.

Features:
Material: 304 grade stainless steel.
Material thickness: 1.2mm.
In wall stud fixed.
Inlet size: (3 hole) 25 x 35 x 25mm.
Outlet size: 40mm BSP male thread.
Will fit 60mm stud.

Replacement faceplate for this tundish is available:
Code: TD3-F - includes screws.

Other MAS Tundish face plates available:

In wall tundish with blank face.Tundish in wall with white face window. In wall tundish with white blank face.



Code: TD3 Tundish In-Wall with Windowed Face Plate.
MAS quality stainless steel plumbing supplies.

TD3WWF

In wall tundish with White window face

In-Wall Tundish with White Window Face

Tundish with white window face.

MAS In-wall tundish with a white window face features a self-draining body and an air break to prevent air lock.

Another benefit is the brushed finish and anti corrosion surface for durability and longevity.

Features:
Material: 304 grade stainless steel.
Material thickness: 1.2mm.
Mounting: In wall stud fixed.
Inlet size: (3 hole) 25 x 35 x 25mm.
Outlet size: 40mm BSP male thread.
Will fit a 60mm stud.
Finish: satin.

Replacement “Faceplate and Screws” are available: Code: TD3-F2

Other MAS Tundish face plates available:

In-wall tundish windowed face.In wall tundish with blank face.In wall tundish with white blank face.

Code: TD3WWF Tundish In-Wall with White Window Face.
MAS quality stainless steel plumbing supplies.

TD3WBF

In wall tundish with White Blank face

In-Wall Tundish with White Blank Face

Tundish with blank white face.

MAS In-wall tundish with a white blank face and a brushed finish anti corrosion surface.

Features a self-draining body and an air break to prevent air lock.

Features:
Material: 304 grade stainless steel.
Material thickness: 1.2mm thickness.
In wall stud fixed.
Inlet size: (3 hole) 25 x 35 x 25mm.
Outlet size: 40mm BSP male thread.
Will fit 60mm stud.

Replacement “Faceplate and Screws” are available: Code# TD3-F3

Other MAS Tundish face plates available:

In-wall tundish windowed face.Tundish with white window face.In wall tundish with blank face.



Code: TD3WBF Tundish In-Wall with White Blank Face.
MAS quality stainless steel plumbing supplies.
