Cistern

CN1, CN3, CN4, CN5, CN, CN11

Wels and Watermarked
Inlet reversible, Left side as standard
Side of tank inlet available on request
Inlet and outlet valves adjustable
Wall to centre of outlet 75mm

Click here to download

Material	304 Grade Stainless Steel
Overall Size	400 x 315 x 150

Options

Capacity	2.6
Outlet	50mm bsp
Inlet	15mm bsp (bottom left)

Capacity	2.6 half / 5.5 full
Outlet	50mm bsp

Capacity	2.6
Outlet	40mm bsp

Capacity	2.6 half / 5.5 full
Outlet	50mm bsp

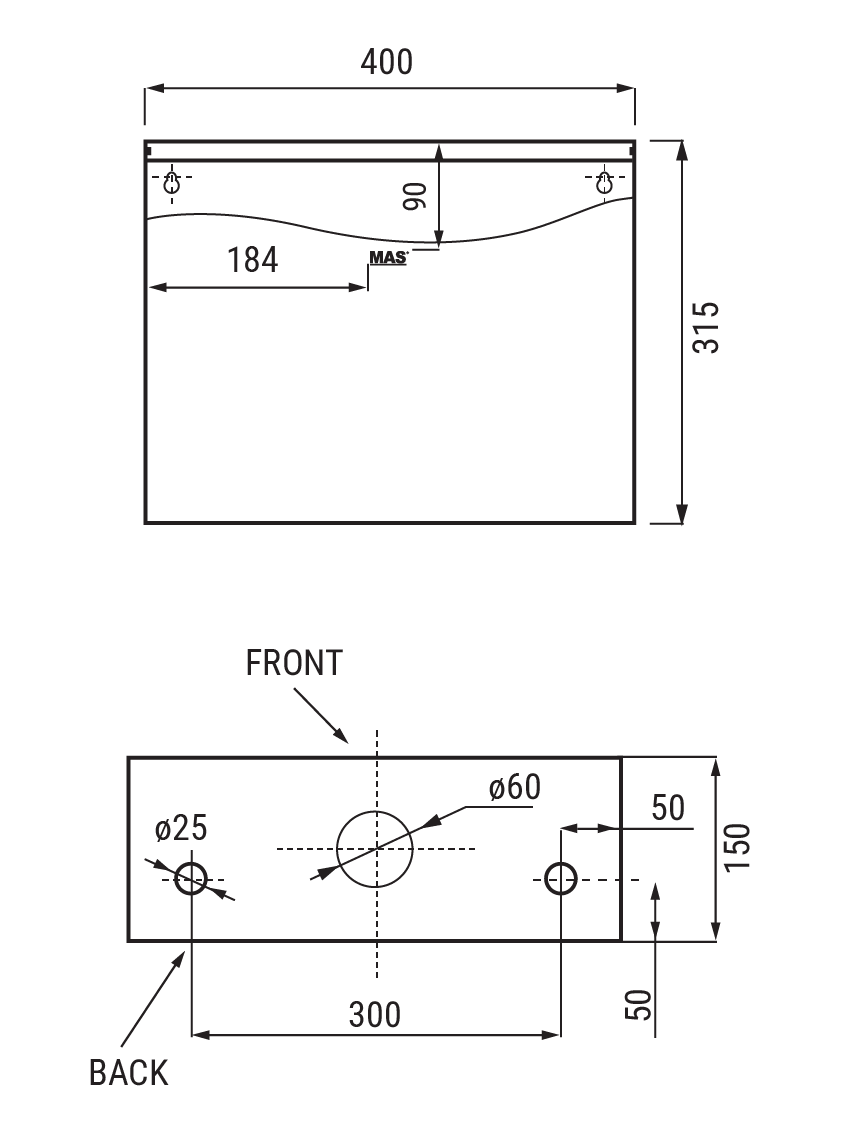

Drawings

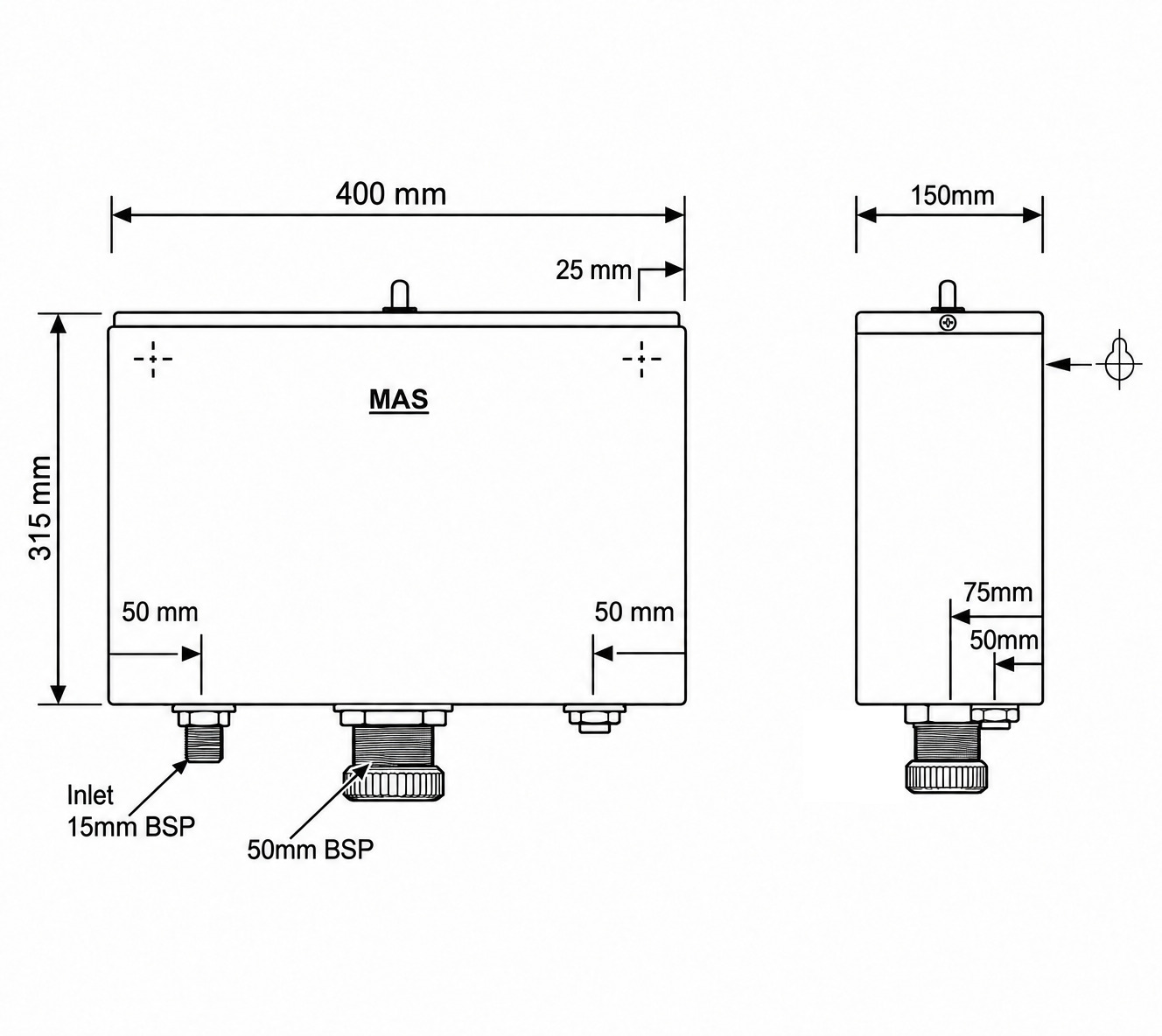

CN1

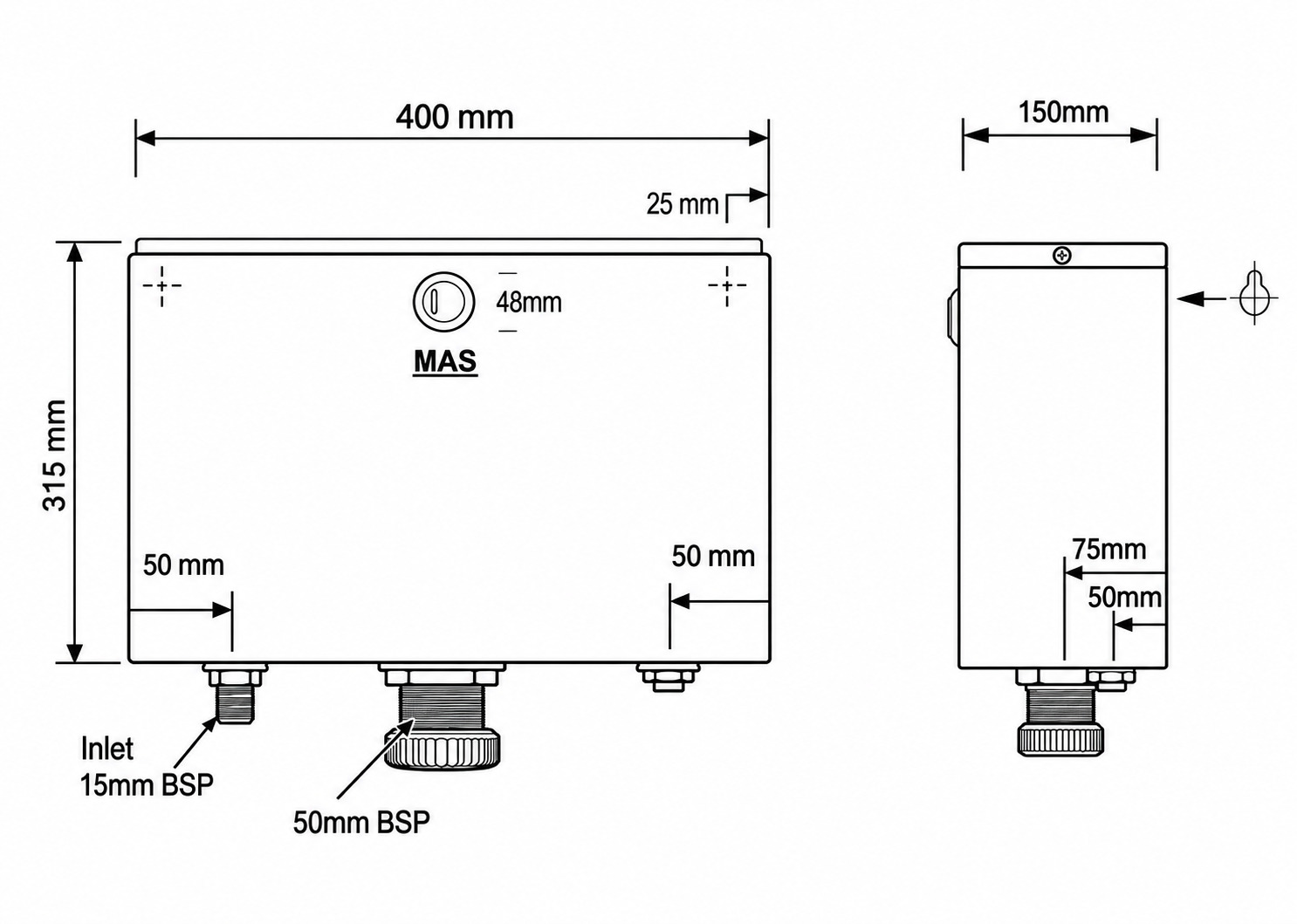

CN3

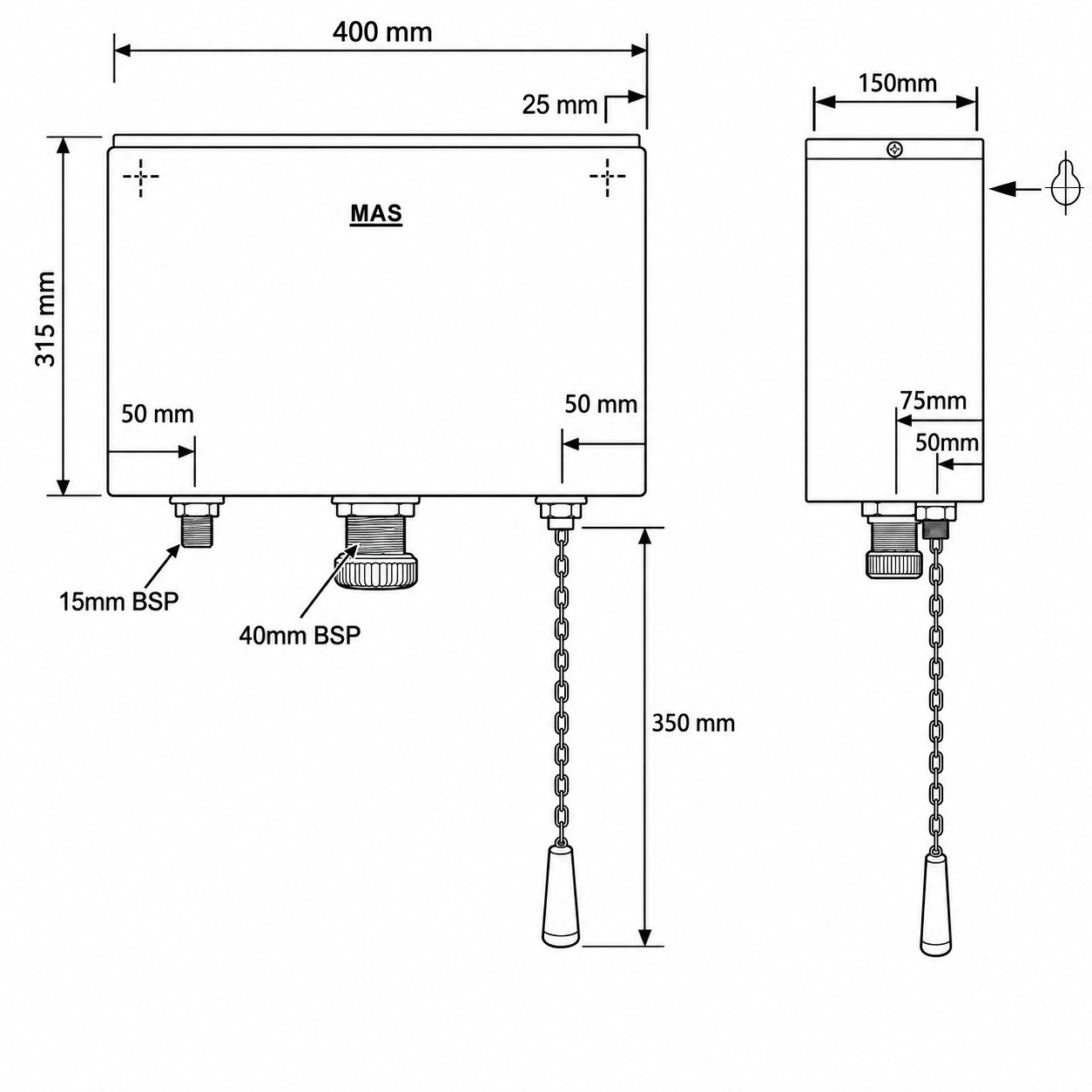

CN4

Cistern

Options

Top Press single flush cistern

Top press Dual Flush cistern

Pull Chain cistern

Dual flush cistern Disability compliant button

Case only with holes

Case only with-out holes

Drawings
